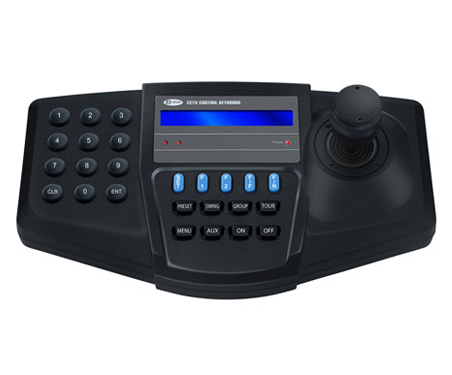

DCK-100
Joystick Controller, D-Max Protocol



  • Pan/Tilt, Zoom, Focus Remote Control
  • Maximum up to 255 Units CCTV receiver and camera control
  • OSD Menu, 3Axis Joystick Control
  • RS-485 Control
  • Popular Keyboard Controller
  • Made in Korea



    • Download Specs

    _________________________________________________________

    Specification
  • Control: Pan/Tilt , Zoom , Power , Auto Pan, Preset, Group, Tour, Trace, AUX Control x 4(Camera Power, Light Power, AUX 1~2)
  • Connecting unit: CCTV Receiver (DRX-502A/500), PTZ Dome Camera
  • Commnication system RS-485
  • Communication speed: RS485 ? 9600bps , N , 8 , 1
  • Operating distance: Shielded twisted pair cable Up to 1.2km
  • Power supply: DC12V, 1A
  • Power Consumption: Max 200mA
  • Operating temperature: 0¢ªC ~ +40¢ªC
  • Weight: About 0.8Kg
  • Dimensions: 302.4(W) x 47.7 (H) x 167.8 (D)mm

    *The specifications are subject to change withouth notice



    •
