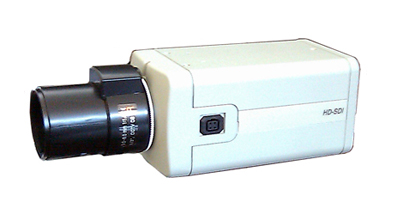

HDC-TDN5
HD-SDI 1.3 Megapixel True Day & Night Standard Camera



  • SONY 1/3" CMOS Sensor
  • High Resolution (1.3 Megapixel)
  • True Day & Night
  • HD-SDI Output
  • Analog Video Output
  • OSD Control
  • Made in Korea



    • Download Specs

    _________________________________________________________

    Specification

  • CMOS Type: 1/3" 1.3 Megapixels Color
  • Total Number of Pixels: 1384 H x 1076 V
  • Minimum Illumination: 4.7 Lux (F1.6, 30IRE, Color), 0.1 Lux (F1.6, 30IRE, B&W)
  • Resolution: 1280 x 720 Pixels 30fps (Color & B&W)
  • Voltage: DC 12V (10~16V)
  • Power Consumption: Max 3.4W
  • Cable Length: Max 150m (75 Ohm Coaxial: 5C~2V)
  • Shutter Speed: 1/30s ~ 1/10,000s
  • S/N Ratio: 50dB or more (AGC Off)
  • Gamma: 0.45
  • Sync System: Internal
  • Operating Temperature: -10`C~55`C
  • Storage Temperature: -20'C~70'C
  • Operating Humidity: Under 90% (Non Condensing)

    *The specifications are subject to change withouth notice


    •
