NT Series HD-SDI DVR
4 Channel Full HD-SDI DVR, 10 Channel Hybrid HD-SDI DVR, up to 1080P Recording Resolution, HD Megapixel Video over Coax Cable
4 Channel Full HD-SDI DVR (NT-412HD)

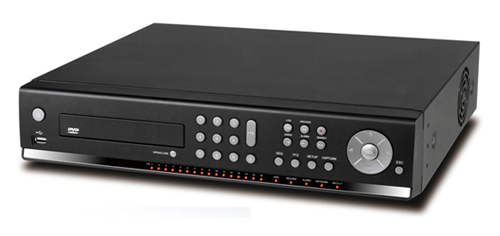

10 Channel HD-SDI Hybrid DVR (NT-1030HD)
HD quality on live and recorded video
Compatible with any HDcctv camera
Provides high definition solution that is suitable for viewing details such as a person's face, reading a license plate or using a single camera to cover a large area.
Megapixel performance over coax
Able to zoom both live and playback
Made in Korea
_________________________________________________________
Specification
Model |
NT-412HD |
NT-1030HD |
Channel
Input Level |
4 CH HD-SDI
720p |
2 CH HD-SDI
720p & 8 CH Analog |
Video
Loss Check |
Yes
|
Main
Monitor Output |
1
HDMI |
Sub
Monitor Output |
1
VGA |
Audio
Input / Output |
4 / 1 |
10 / 1 |
Audio
Codec |
G.711 |
Sensor
Input |
4, NC/NO Selectable |
16, NC/NO
Selectable |
Alarm
Out |
1CH
out (by Sensor, Motion detection and Video Loss) |
Recording
Compression |
H.264
|
Multi
Operation |
Quadplex
(Playback, Recording, Backup, Network) |
Recording
Resolution |
1280 x 720,
640 x360 |
HD-SDI: 1920*1080,
1280*720, 640*360
Composite: 704x480, 704x240, 352x240 (NTSC) |
Recoding
Quality |
5
levels |
Recording
Mode |
Continuous,
Schedule, Motion, Sensor, Manual |
Motion
Detection |
Setup
by Grid |
Pre
Recording |
Min.
1 Minute Before an Event |
Post
Recording |
Max.
1 Hour After an Event |
Multi
Decoding |
1, 4 |
1, 4, 8, 10 |
Playback
Speed |
X2, 4, 16
and 32 |
x0.25, x0.5,
x2, x4, x8, x16, x32 |
Search
Mode |
Timeline,
Event, Archive, Log, Specific Time |
HDD
Interface |
Serial
ATA |
HDD
Capacity of 1 HDD |
2
TB |
Internal
HDD Number |
4 EA |
2 EA or 4
EA without ODD |
External
Storage |
1 eSATA
|
2 eSATA
|
Storage
File System |
NaFS2 |
Backup
Format |
JPEG,
AVI and Exclusive Format |
Backup
Media |
USB, External
HDD, Network |
USB, Optional
ODD, External HDD, Network |
Menu
Display |
GUI |
Input
Method |
IR
Remote Control, Mouse, Front Buttons, Keyboard Controller |
Console
& POS |
1
RS-232C (D-sub 9 pin) |
PTZ
& Keyboard Control |
2
RS-485 |
Dynamic
DNS |
Free
DDNS |
Network
Streaming |
RTP/RTSP |
Network
Protocols |
HTTP,
DDNS, NTP |
Network
Interface |
10/100/1000
Base TX Ethernet (RJ45 1 EA) |
Dual
Network Streaming |
H.264 CIF
30fps/CH |
2 HD-SDI Channel:
H.264 640*360 @120fps / 1280*720 @120fps
8 Analog Channel: CIF@240fps / D1@240fps |
Web
viewer (1:1) |
Live,
Search, Backup, PTZF |
3G
Mobile Viewer (1:1) |
Live |
Multi-sites
Monitoring SW (1:n) |
Live,
Search, Backup, PTZF |
DLS
(Day Light Saving) |
Yes
|
Internal
Beep |
By
Alarm, Motion, Video Loss, HDD error |
Multi Language |
Yes |
Software Upgrade |
By USB Flash Drive |
NTP (network time protocol) |
Yes |
Water Marking |
Yes |
Digital Zoom |
Yes |
Remote Setup |
Yes |
Operation Condition |
0~40'C(41'~104'F),, Humidity 20~80% |
Power |
AC 100~127V/200~240V, 50~60Hz, 280W |
Net Weight |
6 KG / 13.2 LBS |
6.8 kg / 15.0 lbs |
Unit Dimension (W x D x H) |
417mm x 432mm x 99mm / 16.4" x 17" x 3.9" |
432mm x 430mm x 98mm / 17" x 17 " x 38.6" |
*The specifications are subject to change without notice
